Fireproof Aluminum Foil Bubble Insulation Building Heat Insulation Material

Name: Fireproof Aluminum Foil Bubble Insulation Building Heat Insulation Material
Brand: Sentai
SKU: Sentai
Rating: 4.6 (143 reviews)

Product Details

Place of Origin: China

Brand Name: Sentai

Certification: CE / ISO

Payment & Shipping Terms

Minimum Order Quantity: 1000sqm

Packaging Details: 49.00cm * 49.00cm * 120.00cm

Delivery Time: 7-10 days

Payment Terms: L/C, T/T

Supply Ability: 100000sqm / Day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Fireproof aluminum foil bubble insulation, 8mm aluminum foil bubble insulation, 4mm aluminum foil air bubble insulation


Appearance:	Coiled Material	Surface Finishing:	Matt
Shape:	Rectangle	Thickness:	Customized
Material:	Heat / Sound Insulation	Refractory Temperature:	Customized
Length:	5~100m Per Roll	Structure:	MPET / Bubble, Customized
Specification:	1.2 / 1.5m In Width	Transport Package:	Poly Bag

Appearance:	Coiled Material
Surface Finishing:	Matt
Shape:	Rectangle
Thickness:	Customized
Material:	Heat / Sound Insulation
Refractory Temperature:	Customized
Length:	5~100m Per Roll
Structure:	MPET / Bubble, Customized
Specification:	1.2 / 1.5m In Width
Transport Package:	Poly Bag

Product Description

Fire Retardant & Fireproof Material Aluminum Foil Bubble Building Heat Insulation Material

Products Description

Besides widely used in thermal insulation of roof building, with good thermal insulation performance.

it can also be made into a heat preservation cover with good heat sealing performance.

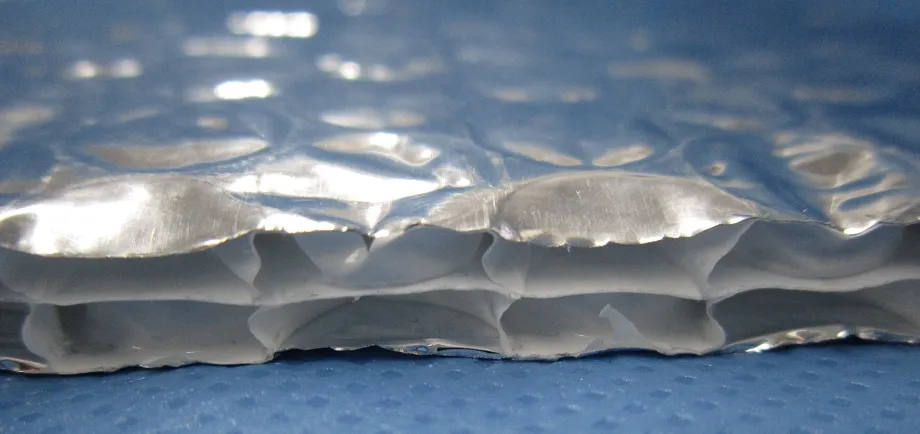

A. Single Bubble Foil

1) 1 layer of 4mm polyethylene bubble that is sandwiched between two aluminum foils, low emissivity surfaces.
2) The polyethylene encapsulated air bubbles serve as an effective thermal break as well as a vapor barrier while the two outer surfaces reflect up to 97% of all radiant energy.

Fire Retardant & Fireproof Material Aluminum Foil Bubble Building Heat Insulation Material

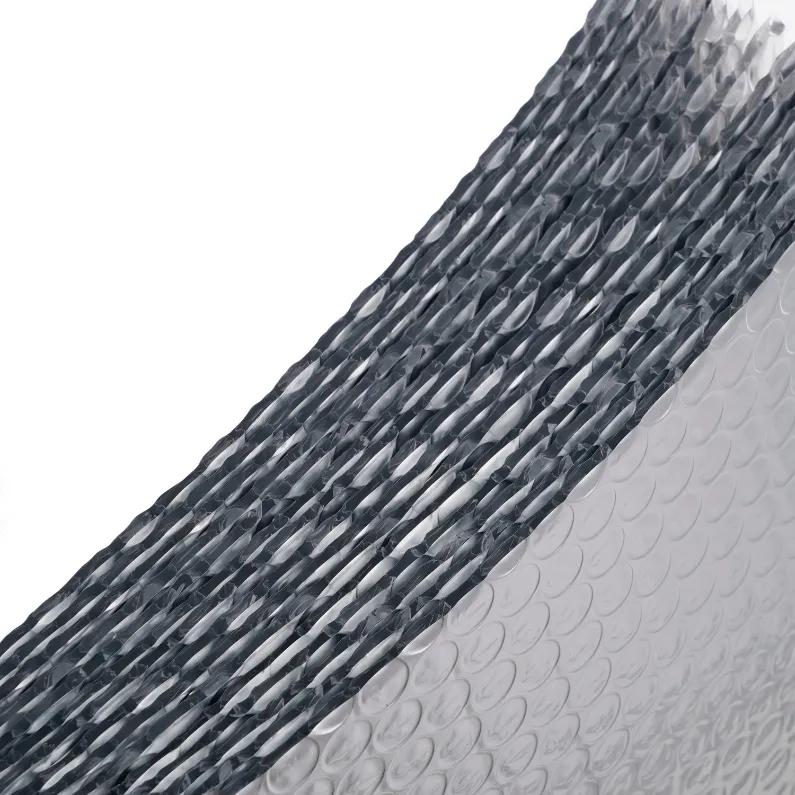

B. Double Bubble Foil

1) Reflects almost 97% of the radiant heat rays to keep the inner atmosphere cool.
2) Two layered polyethylene air bubble film laminated between 99% of aluminum.
3) Much stronger & durable that can even withstand punctures and tears over a long run.

Fire Retardant & Fireproof Material Aluminum Foil Bubble Building Heat Insulation Material

Typical Physical Properties
Thickness	4-8mm
Length	5m, 10m, 25m, 40m etc customized
Width	1.2m
Sqms/Roll	6 sqm / 12sqm / 30sqm / 48sqm
Reflectivity	97%
Emissivity	0.03
Water proof	100%
Fire proof	Class A
Application Temperature	-50ºC~80ºC
MOQ	3000 Square Meters

Types / Structures Optionals
1	MPET + (single / double) PE bubble
2	MPET + (single / double) PE bubble + MPET
3	Alu + (single / double) PE bubble
4	Alu + (single / double) PE bubble + Alu
5	Alu + woven + (single / double) PE bubble + Alu
6	Alu + woven + (single / double) PE bubble + woven + Alu
7	Alu + woven + (single / double) PE bubble + Alu + Anti-glare coating
8	Alu + (single / double) PE bubble + woven + Alu + Anti-glare coating

Applications

* Heat Insulation: Building Thermal Insulation Material to reduce summer heat and keep warm in winter.
* Covers: It can be heat sealed to be roof cover to reflect heat radiation and seal airtight.

* Wrapping: Protective coating of ventilating pipe, HVAC Duct & Pipe or To make Bubble mailer, Bag

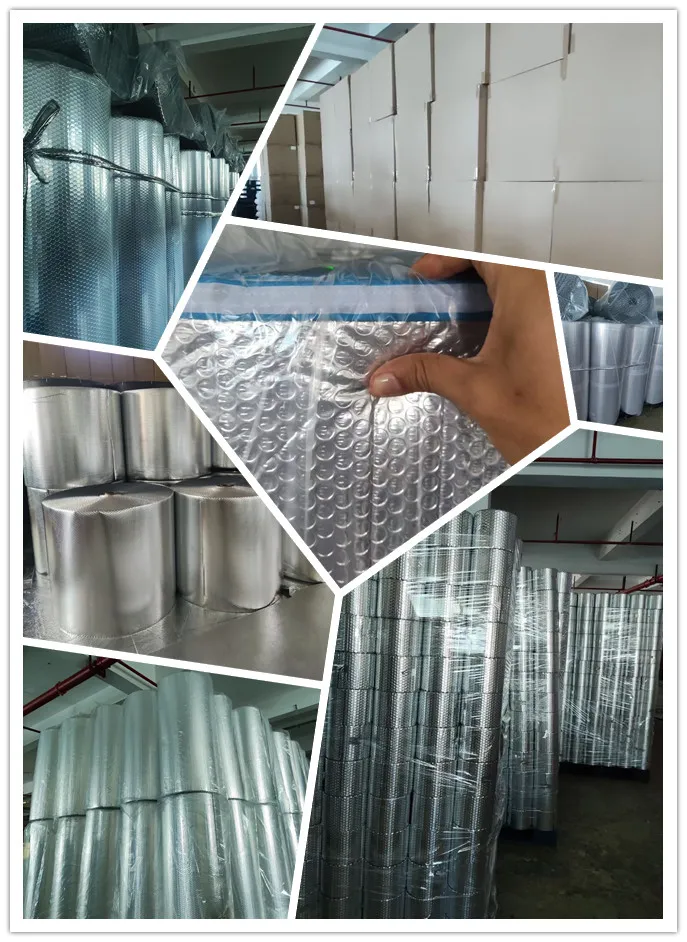

Packaging & Delivery

Package: It can be cut into 5-100m per roll according to client's requirements, and then packed with poly bag.

* A 20 container can load about metal roofing insulation
* A 40HQ can load about 22 tons metal roofing insulation

Delivery: Storage products are prepaid within 5-7 days and shipped,

Custom products are generally prepaid within 7 days.

For more details, please contact us!
Fire Retardant & Fireproof Material Aluminum Foil Bubble Building Heat Insulation Material
