Product Details
Place of Origin: China
Brand Name: Sentai
Certification: CE / ISO
Payment & Shipping Terms
Minimum Order Quantity: 1000sqm
Packaging Details: 49.00cm * 49.00cm * 120.00cm
Delivery Time: 7-10 days
Payment Terms: L/C, T/T
Supply Ability: 100000sqm / Day
Material: |
Aluminum Foil ,PE Bubble |
Reflectivity: |
96-97% |
Normal Length: |
100-1000m |
Emissivity: |
0.03-0.05 |
Material Thermal Resistance: |
0.24 (m2 K/W) |
Thickness: |
1-20mm/Customized |
Normal Width: |
100cm, 120cm, 125cm, 130, 150cm, 180cm, 200cm |
Normal GSM: |
100gsm To 200gsm |
Material: |
Aluminum Foil ,PE Bubble |
Reflectivity: |
96-97% |
Normal Length: |
100-1000m |
Emissivity: |
0.03-0.05 |
Material Thermal Resistance: |
0.24 (m2 K/W) |
Thickness: |
1-20mm/Customized |
Normal Width: |
100cm, 120cm, 125cm, 130, 150cm, 180cm, 200cm |
Normal GSM: |
100gsm To 200gsm |

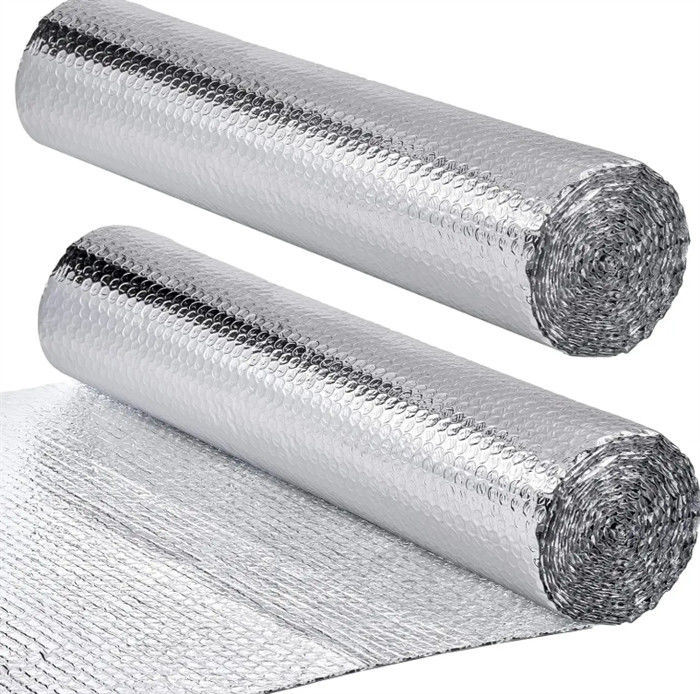

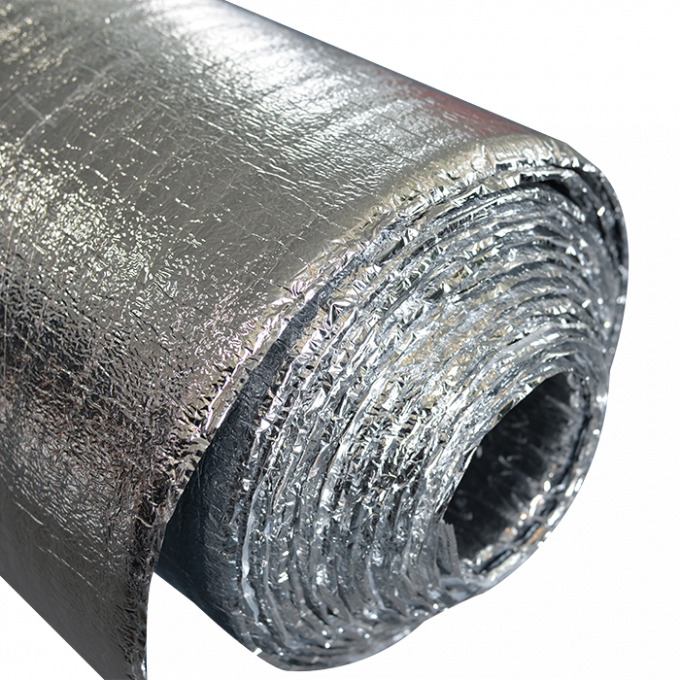

Aluminum Foil Laminated Air Bubble Film Material
for Reflective Sound Heat Insulation
Construction: MPET + single/double PE bubble
MPET + single/double PE bubble + MPET
|
Product Name:
|
attic blanket insulation air bubble insulation
|
|
Main Material:
|
Alumium Foil, PE bubble
|
|
Bubble diameter:
|
8mm,10mm,20mm,25mm,35mm
|
|
Coating Color:
|
Blue, Green, Pink, Orange, Oliver or customized
|
|
MPET/ Pure AL Thickness:
|
7 micron / 12 micron
|
|
Bubble size :
|
S: 8*2.5mm M:10*4mm, 10*5mm L: 20*7mm, 25*10mm
|
|
Fire Rating:
|
Class 1/Class A(ASTM E84-09)
|
|
full Room Burn:
|
Pass (NFPA 286)
|
|
Emissivity:
|
0.04 (ASTM C1371-04A)
|
|
Reflectivity:
|
0.96 (ASTM E903)
|
|
Temp Range:
|
-50F to 180F (ASTM C411)
|
|
Water Vapor Permeability:
|
0.02 Perms (ASTM E96)
|
|
Resistance to Fungi:
|
Does not promote growth (ASTM C1149)
|
|
Pliability:
|
No Cracking (ASTM C1224-03)
|
|
Bleeding:
|
None (ASTM C1224-03)
|
|
Corrosiveness:
|
Pass (ASTM D3310-00)
|
|
Thermal Resistance:
|
R-3 to R-21 (Varies depending on application)
|
1.Waterproof, heavy duty, clean, light, flexible, non-absorbent surface
2.Fire resistant & antiglare
3.Recyclable, environmentally friendly
4.Effective in extreme temperatures both hot and cold
5.Easily install, cut, stapled, nailed or glued into place
6.Safe to handle with no special clothing or breathing Equipment
Application:

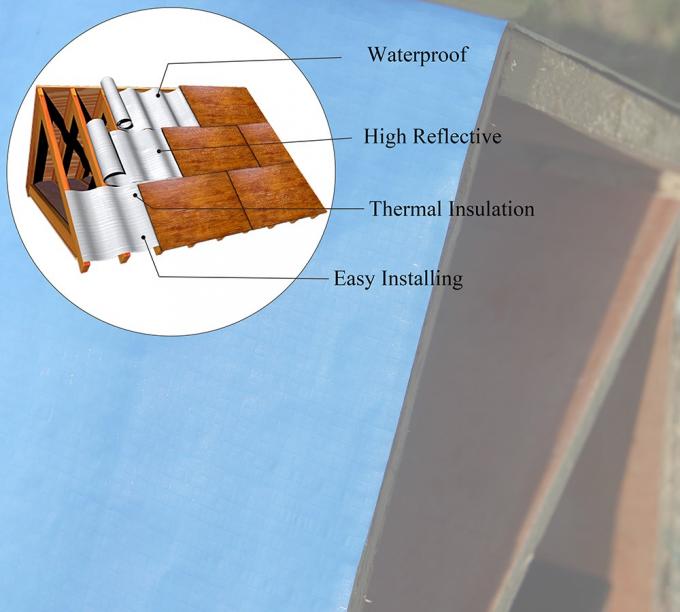

1 Building Thermal Insulation Material
(1) Roof,Underlay,Under Concrete & floor Insulation;
(2) Attic,Crawl Space,Stud Wall ,Metal Frame Building Insulation.
(3) Protective coatings of ventilating pipe,HVAC Duct & Pipe;
(4) Shells of air conditioner and water heater.
