Product Details
Place of Origin: China
Brand Name: Sentai
Certification: CE / ISO
Payment & Shipping Terms
Minimum Order Quantity: 1000sqm
Packaging Details: 49.00cm * 49.00cm * 120.00cm
Delivery Time: 7-10 days
Payment Terms: L/C, T/T
Supply Ability: 100000sqm / Day
Material: |
Al+Bubble Or Foam+Al |
Material Structure: |
Alu +Bubble Or Foam+Alu |
Emissivity: |
0.03-0.05 |
Material Thermal Resistance: |
0.24 (m2 K/W) |
Thickness: |
1-20mm/Customized |
Normal Width: |
100cm, 120cm, 125cm, 130, 150cm, 180cm, 200cm |
Normal GSM: |
100gsm To 200gsm |
Material: |
Al+Bubble Or Foam+Al |
Material Structure: |
Alu +Bubble Or Foam+Alu |
Emissivity: |
0.03-0.05 |
Material Thermal Resistance: |
0.24 (m2 K/W) |
Thickness: |
1-20mm/Customized |
Normal Width: |
100cm, 120cm, 125cm, 130, 150cm, 180cm, 200cm |
Normal GSM: |
100gsm To 200gsm |
|
Item
|

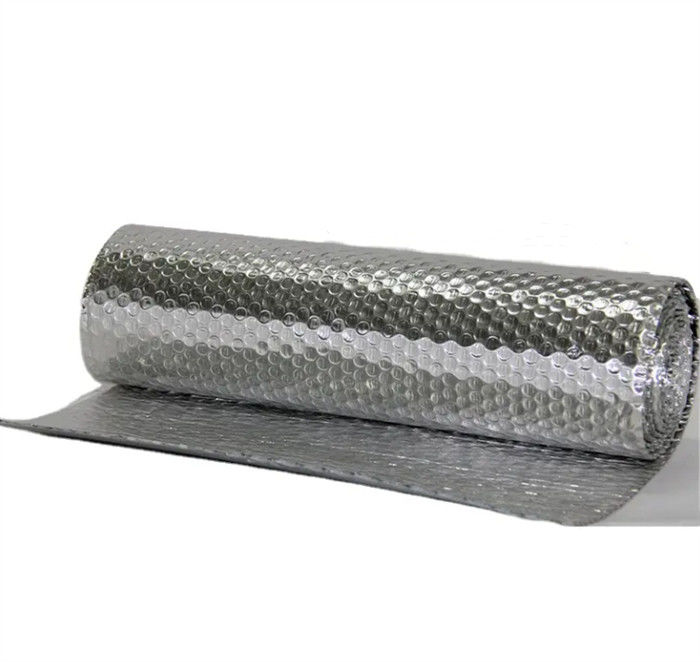

Heat insulation material/reflective aluminium bubble foil insulation
|
|||
|
Main Structure
|
1) Al / bubble / Al (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm)
2) Al / bubble + bubble / Al (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 3) Al / bubble / white PE anti-flaming sheet (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 4) Al / white anti-flaming bubble / Aluminum with blue color (bubble: ¢ : 20mm, H: 7mm) 5) AL / white anti flaming bubble / woven cloth /AL ( bubble: ¢ : 20mm, H: 7mm ). Normal roll size: 1.2m x 40m / roll, various lengths available upon requests |
|||
|
Thickness
|
4mm or customzied
|
|||
|
Roll Size
|
1.2*40m per roll
|
|||
|
Reflectivity
|
97%
|
|||
|
Bubble Size
|
10*2.5/10*3/10*4/10*5/20*7/25*8/25*10
|
|||
|
Logo Printing
|
OEM Available
|
|||
Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wrappings,Container liner,Sun-stop cover and vehicles.

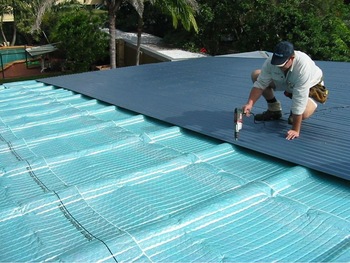

1.Purchase approximately 10% more for overlapping and to provide the proper air gap between the purlins
2.Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin.
3.Secure the bubble foil to the framing members with furring strips. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.
4.Cover the seams of the bubble insulation with foil tape.
